THE

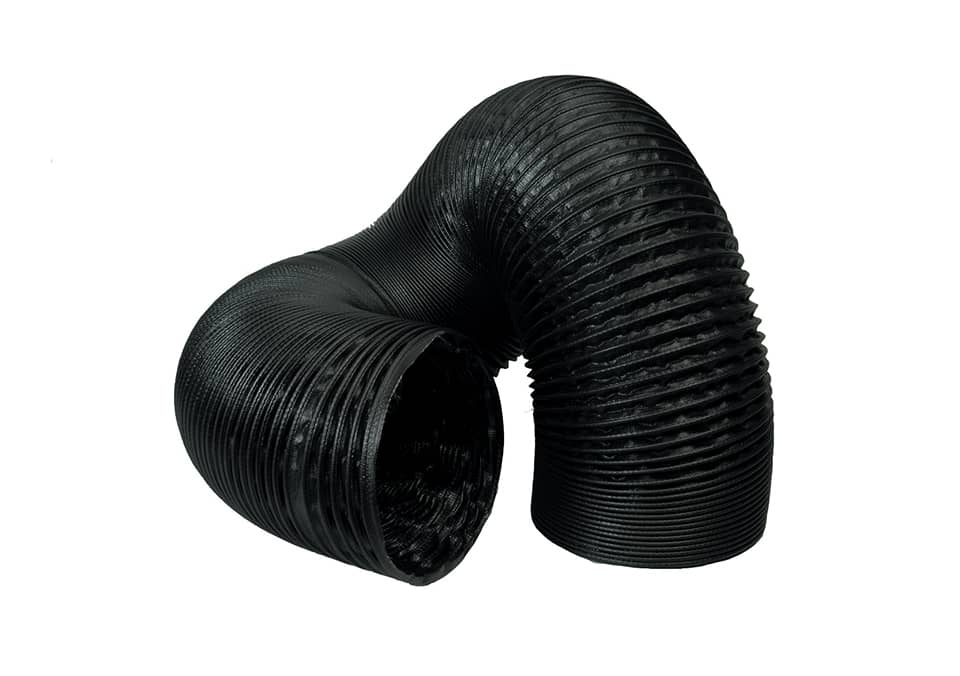

Fabric Reinforced Thermoplastic Elastomer Ducting

Industrial ducting is designed with a fabric-reinforced thermoplastic elastomer, a steel wire helix, and heat-sealed construction for versatile, all-purpose flexible ducting that supports effective air circulation. Excellent chemical and abrasion resistance with low compression and tension set.

Extraction THE-SD can withstand the effects of weathering, ultraviolet rays, and ozone. Materials are resistant to flex fatigue, oils, hydrocarbons, and aqueous-based fluids and are not subject to common bond failure. Its flexible construction also allows for easy installation in demanding industrial environments. Ducting is flame-resistant in accordance with UL94VTM-O.

Specs

  • Weight: 15 oz/yd² (509 g/m²)
  • Temperature Range: -65 to 250 F (-54 to 121 C)
  • Wire: Hard-Drawn Steel
  • Length: 25′, 50′ (7.5, 15.5 m) *Custom lengths available upon request
  • Color(s): Black, Yellow
  • Standard Pitch:
    • .5″ (1.5 cm) for 2″ (50 mm) diameters
    • .75″ (2 cm) for 2.5″ and 3″ (50 and 100 mm) diameters
    • 1″ (2.5 cm) for 3.5″ – 8″ (100 – 200 mm) diameters
    • 2″ (5 cm) for 10″ – 20″ (250 – 500 mm) diameters
  • Expanded Pitch: 3″ (7.5 cm) for 24″ – 42″ (600 – 1,050 mm) diameters
  • Optional End Finishes: Belt Cuff, Soft Cuff, Wire Rope Coupling (available in 6″ and larger diameters)
  • Optional Wear Strip: Standard-Duty Extruded PVC
  • Inside Diameter: 2″ – 42″ (50 – 1,050 mm)
