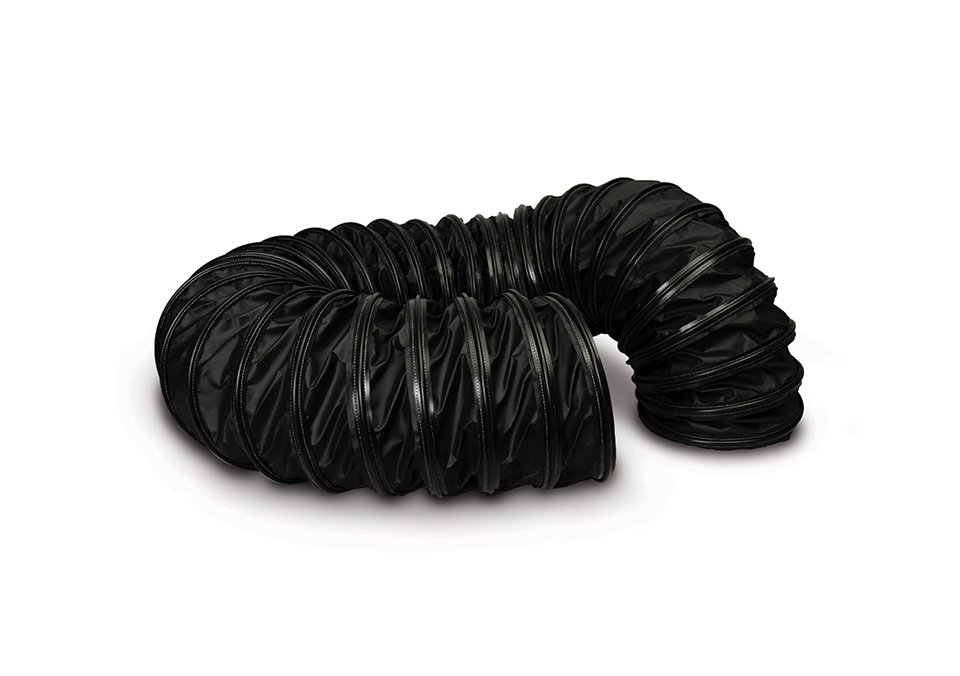

Standard Plus (15WK)

Insulated and Non-Insulated Portable Heater Ducting

ABC Industries’ Standard Plus (15WK) is a thermoplastic elastomer with a wrap knit baker and steel wire helix. Both insulated and non-insulated options are available. This product has excellent UV stabilization with mold and mildew inhibitors for rigorous outdoor use in both blowing and exhausting applications.

*Not recommended for aircraft ground support applications

Specs

  • Sewn Construction
  • Flame resistant in accordance with UL94VTM-O
  • Weight: 15 oz/yd² (509 g/m²)
  • Temperature Range: -65 to 350 F (-54 to 177 C) Intermittent
  • Wire: Hard-Drawn Steel
  • Length: 15′ (4.5 m), 25′ (7.5 m)
  • Color(s): Black, Desert Tan, Olive Drab, White, Yellow
  • Standard Pitch:
    • 3″ (7.5 cm) for 6″ and 7″ (150 and 200 mm) diameters
    • 4″ (10 cm) for 8″ (200 mm) and larger diameters
  • Expanded Pitch: 7″ (18 cm) for 12″ (300 mm) and larger diameters
  • Optional End Finishes: Pinlock Coupling, Belt Cuff, Wire Rope Coupling, Soft Cuff
  • Optional Wear Strip: Heavy-Duty Black (Military Specification), White
  • Inside Diameter: 6″ – 36″ (150 – 900 mm)
  • Larger diameters available upon request
